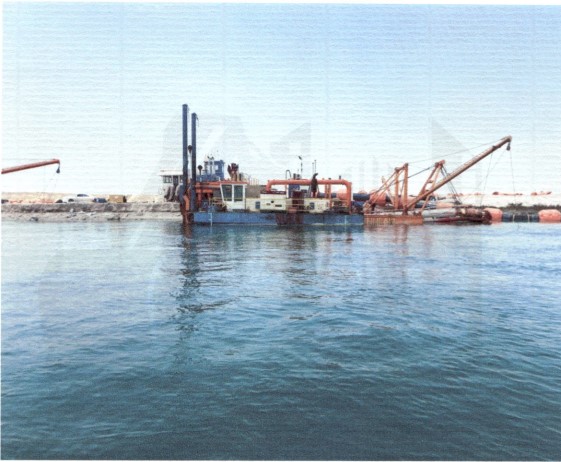

| Make and Model | JLCSD 300 |
| Dredger Type | Cutter Suction Dredger |
Principal Dimensions
| Length Overall | 25.6 m | WITH SPUD CARRAIGE |
| Breadth | 5.4 m | |
| Depth | 1.6 m | |
| Draft Loaded | 1.0 m | |
| Max Dredging Depth | 10.0 m | |
| Diameter of Suction Pipe | 350 mm | |
| Diameter of Discharge Pipe | 300 min | |
| Discharge Distance | 1000 m | |
| Discharge Distance | 1400 m3/hr | |
| Total Installed Power | 559 kw |
Main Pontoon
| Length | 11.5 m | |
| Width | 2.2 in | |
| Depth | 1.6 in | |
| Plate Thickness – Deck | 5 mm | CCSB Steel Plate |
| Plate Thickness – Sides | 6 mm | CCSB Steel Plate |
| Plate Thickness – Bottom | 10 mm | CCSB Steel Plate |
| Plate Thickness – Front & Rear | 12 / 12 mm | CCSB Steel Plate |
Side Pontoons
| Length | 17.00 m | |
| Width | 1.6 in | |
| Depth | 1.6 m | |
| Plate Thickness – Deck | 5 mm | CCSB Steel Plate |
| Plate Thickness – Sides | 6 mm | CCSB Steel Plate |
| Plate Thickness – Bottom | 8 mm | CCSB Steel Plate |
Dredging Pump
| Model | CUMMINS |
| Head | KTA 19 |
| Rated Power with RPM | 559 KW @ 1800 RPM |
Main Engine
| Manufacturer | CUMMINS |
| Model | KTA 19 |
| Rated Power with RPM | 1760 KW @ 1000RPM |
Gear Box
| Manufacturer | Hangzhou |
| Model | Marine Gearbox |
Cutter
| Type | Crown |
| Wearing Parts | Replaceable Alloy Teeth |
| Drive | Hydraulic Motor |
| Cutter Shaft Power | 60 kw |
| Cutting Speed in RPM | 0-40 rpm |
| Material | Alloy |
| Number of blades teeth | 20 pieces |
